From 6 kW to 3.2 MW, we design and manufacture resistive and smart load banks for data centers, generators, EV systems, UPS, and high-voltage testing—engineered for reliability, safety, and continuous operation.
RESISTIVE LOAD BANKS
About Us

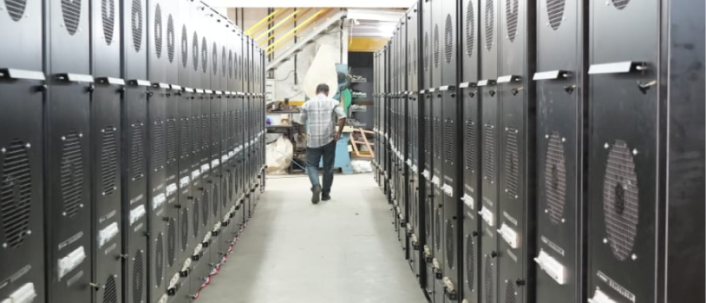

We at Dynamic Innvoation are A mass producers of Resistive Load banks Ranging from 6 KW up to 200KW These Load banks are essential for Integrated System testing in Datacentre Server Halls. Battery test Discharge , & Generator Testing. Electric vehicle Battery test discharge. Power Supplies Test for EV & Hybrid Vehicles.
100K+
Panel installed
25K+
Plants Power
16+
Year of Experties
Our Products
Server Hall Load Bank
Designed with High precision machines.
Heavy Duty Fans for Continuous operation @170CFM / KW
PROTECTION OFFERED : MINIATURE CIRCUIT BREAKERS FOR ALL STEPS
Fuse protection for Fan
High Temperature withstand wires (Glass Fibre insulated wires)
Available in Rack mount Design up to 6KW Above 6KW Pedestal mounting with
- Range : 6KW– 9KW-12KW-12.6KW—18KW
- Generator Test Banks : 100KW—200KW
- IEC Plug 3 Pin—32A with 3Meter Long wire.
Panel Installation
Energy Storage Systems
Off-Grid Solutions
Solar Energy Services
FEATURED PRODUCTS
Switch to solar and enjoy lower bills, clean energy, and expert service designed
for homes, businesses, and beyond.

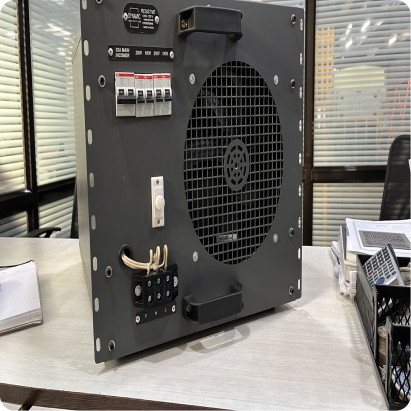

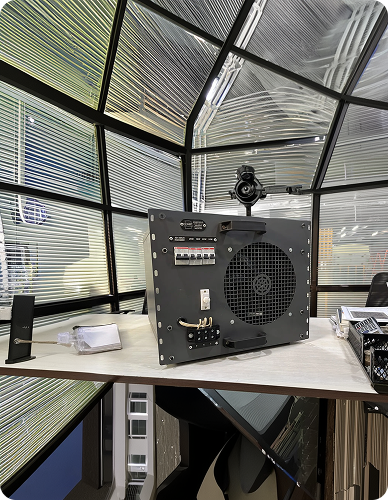

Small Portable Rack mountable . For Server Hall
Capacity : 125V DC—15KW
Voltages Available : 12—150VDC & 120VAC—240VAC.
Frequency : 50 / 60 Hz (Optional)
Loat Type : Resistive Bank.
Power Factor : 1
Load Steps : 1KW , 2KW,3KW
3Phase optional Splitter Box Available for Scaling up to 18 KW in Server Hall. (OPTIONAL)
CFM : Controllable up to 1050CFM Per Bank.
Digital Control through webserver Software : Optional
SERVER HALL BANK 9 KW—15KW
Capacity : 125V DC / 230 / 415V Ac 9 KW —15KW
Voltages Available : 240VAC / 425VAC.
Frequency : 50 / 60 Hz (Optional)
Loat Type : Resistive Bank.
Power Factor : 1
Load Steps : ,3KW + 3KW +3 KW + 3KW + 3KW
SINGLE PHASE / 3 PHASE CONVERTIBLE
CFM : Controllable up to 1050CFM Per Bank.
Digital Control through webserver Software : Optional

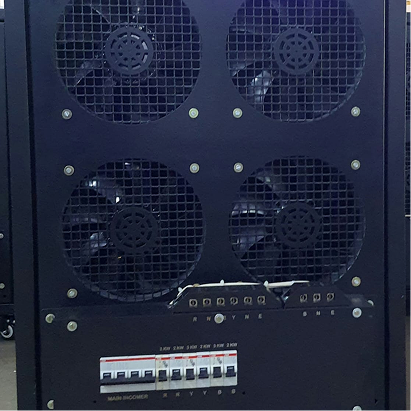

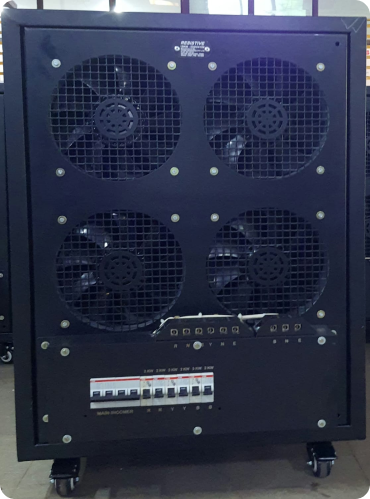

SERVER HALL BANK 18KW
OPERATING VOLTAGE : 415VAC Voltages Available : 415 VAC Frequency : 50 / 60 Hz Loat Type : Resistive Bank. Power Factor : 1 Load Steps : ,4KW +2 KW , + 4KW +2KW . + 4KW +2KW CFM : 3150CFM Digital Control through webserver Software : Optional

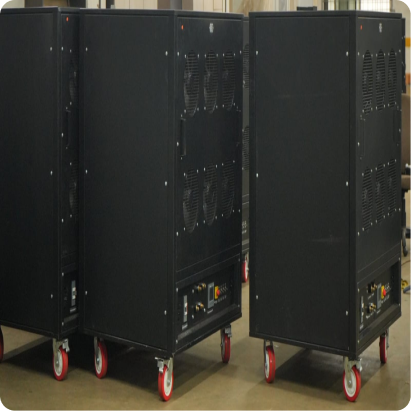

18KW - 100KW- SMART LOAD bank.
Features: –
Smart Monitoring and Control System
– Wireless Connectivity for Remote Access –
Individual or Group Switching Capability –
Real-time Monitoring of Load, Voltage, and Current, KW – Temperature Monitoring (Inlet and Outlet)
– Graph Printing Capability

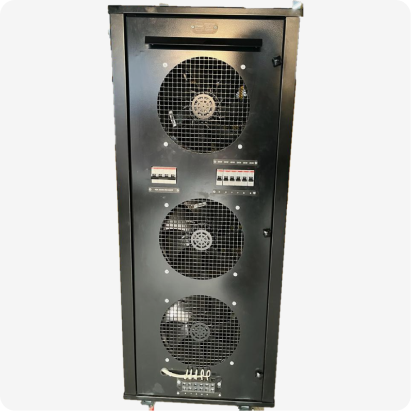

RACK Design : 12.6KW
DIMENSIONS : 2000MM X 500MM X 900MM
ADVANTAGE : SELF STANDING ,
No need for Shrouding
HIGH CFM : 3PHASE—SINGLE PHASE CONVERTIBLE 230—415V CHENGEOVER ISOLATOR INDIVIDUAL MCB FOR EACH STEP
Load steps : 3.2 KW x 4
CFM : 160 CFM / KW
POWER WIRE : 3 MTR WITH IEC SOCKET
POWER FACTOR : 1
LOAD TYPE : RESISITIVE
OPTIONAL : DIGITAL CONTROLLED SOFTWARE
THOUGH WEB CONTROL. UP TO 200 UNITS.CAN BE CONTROLLED THOUGH MOBILE / TAB / COMPUTER FOR CONTINUOUS MONITORING &CONROL.
Trusted & Affordable
Benifits of Smart Load Banks
Minimized Setup Time
Certified professionals with years of solar installation experience.Automated Transition
reducing transition time from 20 minutes to less than 30 secondsGraph Printing
Allows users to print graphs for analysis and reportiReal-time Data
Simultaneously monitors load, voltage, current, and temperature.Smart Monitoring and Control
Resistive Load Banks feature an advanced monitoring and control system, accessible via tablet or mobile device.Wireless Connectivity
Connects to a central control console through a wireless access pointEnvironmentally Friendly
reducing carbon footprint
Our Products

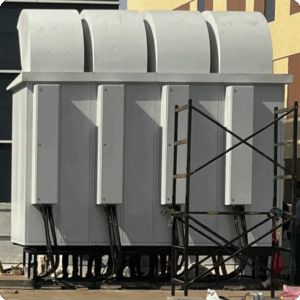

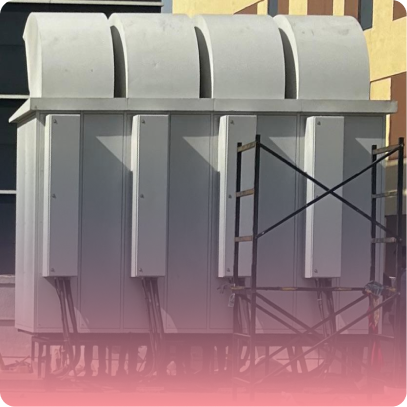

Bulk Load Bank 500 KV - 3200 KV Resistive or With 0.8PF for generating Testing 440KV - 1100KV
Dynimics Innovations Engineers have successfully delivered and commissioned 11KV 2MW Load banks to Customers in UAE
Containerized Design, (Resistance banks/ Switching Panel / Transformer / HT RMU ) everything are in a single container
Automation : Record Graphs, / Set auto ramp/ Analyze reports through the stored data all in one solution with a touch screen console for remote operation
Operating temperature : 70 degrees C to 130 Degrees C.
igh speed fans that Deliver CFM above 160,000
Panel Installation
Energy Storage Systems
Off-Grid Solutions
11KV Load Banks Smart Features
Trusted & Affordable
automatic load ramping program settable by user
monitoring and control available through tablet ,
wireless controls , software capable to record and produce graphs for load switched with respect to time.
Sefety features : all steps are protected for overcurrent / shortcircuit / ground fault
fan controls : auto trip on fan motor trip/ fan monitoring .
Exhaust : Vertical
IP degree of Protection : ip 44 outdoor weather proof.
